Applications

Electrolyzer

Short stack

The EIS-capable EL1002, powered by a power supply, provides a flexible solution for short-stack electrolyzer characterization. Such a system supports operation up to 1 kW, with currents up to 200 A or voltages up to 100 V.

With an adequate power supply, the unique EXT+ connection of the EL1002 enables EIS measurements up to 1 kW and DC operation up to 68 kW at voltages up to 100 V.

Optional PAD42 card extensions enable synchronous measurements on individual cells within a stack, half-cell characterization, and cross-sectional analysis, allowing more detailed evaluation of electrolyzer stacks.

The system can be controlled either through Zahner Lab software or integrated into automated setups via C++, Python, or WebSockets.

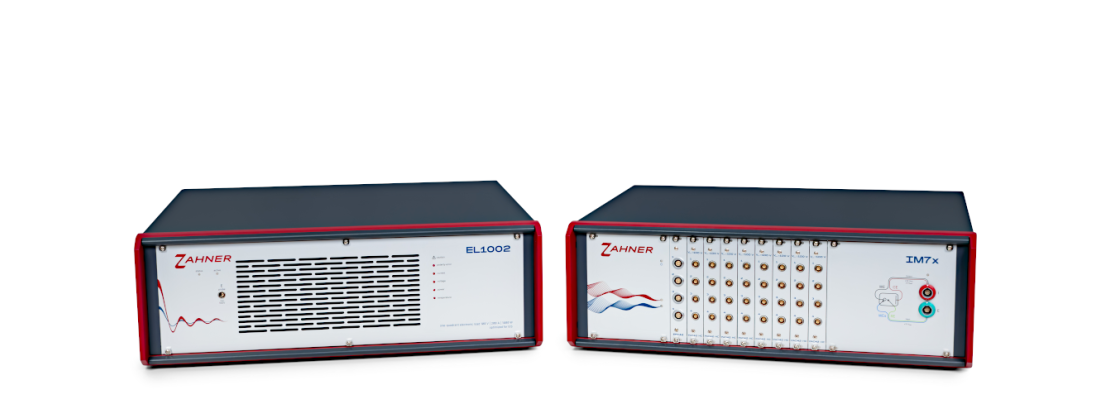

The EL1002 is used as an extension of an IM7 or IM7x potentiostat.

Technical specifications

Voltage range:
4V / 100 V
Current range:
200 A
Current range (EXT mode):
680 A
EIS frequency range:
10 µHz - 100 kHz

In-depth electrolyzer analysis

The PAD42 cards in the IM7 or IM7x can be used together with EL1002 to perform synchronous measurements for in-depth analysis of the electrolyzer stacks.

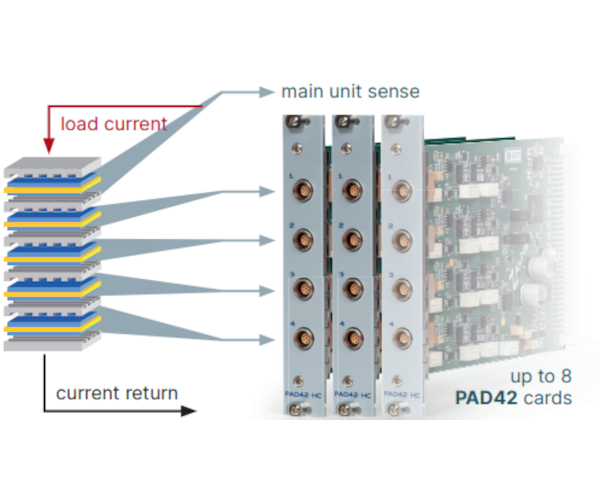

Stack-level analysis

The PAD42 cards allow synchronous EIS or DC measurements on each cell in a stack. With eight PAD42 cards, up to 33 synchronous measurements can be carried out on individual cells in a stack.

Learn more

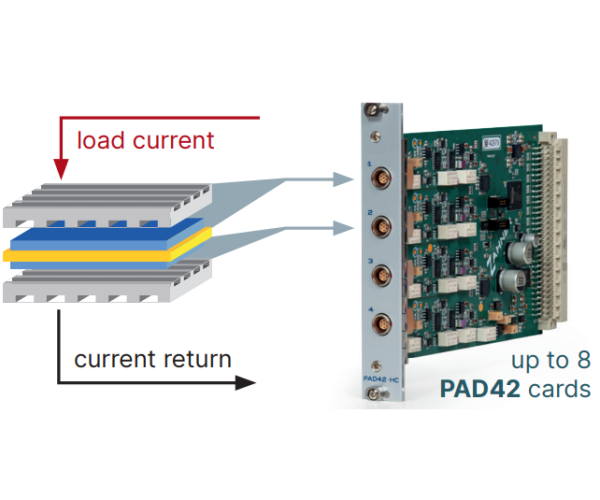

Half-cell analysis

The PAD42 cards in the IM7 or IM7x can be used to perform synchronous measurements at each electrode in a reference electrode setup.

Learn more

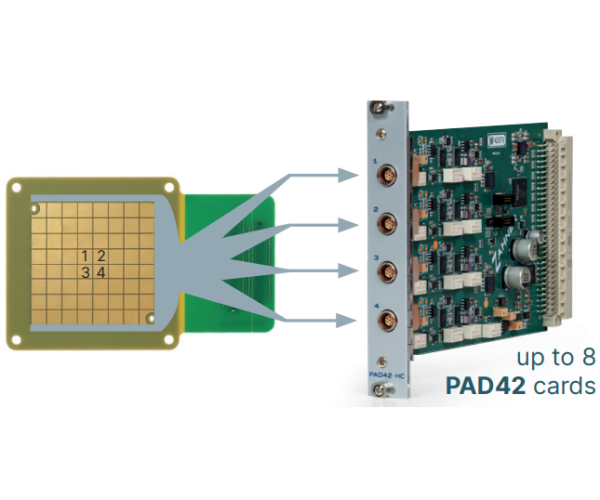

Electrode-level analysis

The PAD42 cards (with segmented shunts) enables cross-sectional analysis of the cell.

Learn more

Download

Download the PP2x2/PAD42/EL1002 Flyer.
