Single cell
The EIS-capable PP2x2 series power potentiostat provides a flexible 200 W solution for electrolyzer characterization. Systems are available with current ranges of ±10 A, ±20 A, or ±40 A.
The optional PAD42 card extension enables synchronous half-cell characterization and cross-sectional analysis of the cell, allowing for more detailed evaluation of the electrolyzer cell.
The system can be controlled through Zahner Lab software or integrated into automated setups via C++, Python, or WebSockets.

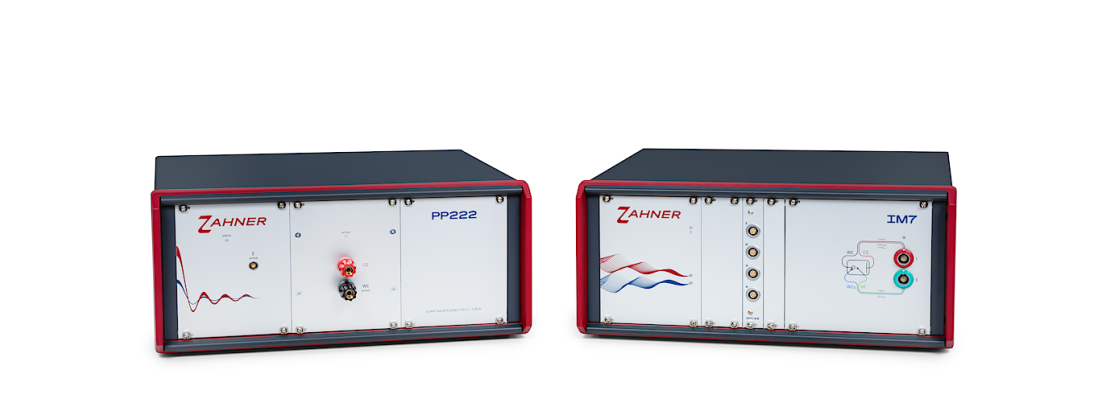

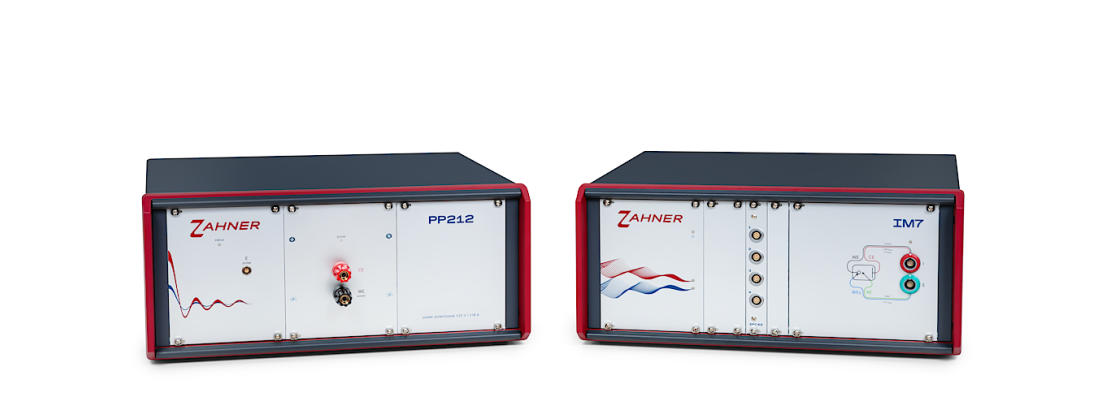

The PP2x2 series power potentiostat is used as an extension of an IM7 or IM7x potentiostat.
The optional PAD42 card extension enables synchronous half-cell characterization and cross-sectional analysis of the cell, allowing for more detailed evaluation of the electrolyzer cell.
The system can be controlled through Zahner Lab software or integrated into automated setups via C++, Python, or WebSockets.
The PP2x2 series power potentiostat is used as an extension of an IM7 or IM7x potentiostat.
Technical specifications
Current range:
±10 A
Voltage range:
±20 V
EIS frequency range:
10 µHz - 400 kHz
Current range:
±20 A
Voltage range:
±10 V
EIS frequency range:
10 µHz - 400 kHz
Current range:
±40 A
Voltage range:
±5 V
EIS frequency range:
10 µHz - 400 kHz
In-depth electrolyzer analysis
The PAD42 cards in the IM7 or IM7x can be used together with PP2x2 potentiostats to perform synchronous measurements for in-depth analysis of electrolyzer.

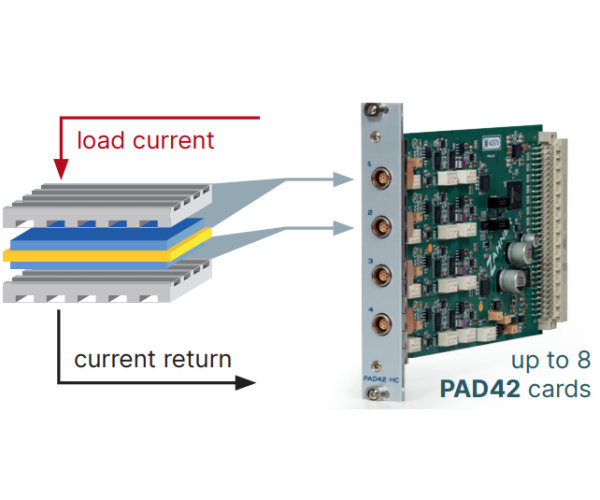

Half-cell analysis
The PAD42 cards in the IM7 or IM7x can be used together with PP2x2 potentiostats to perform synchronous measurements at each electrode in a reference electrode setup.
Learn more

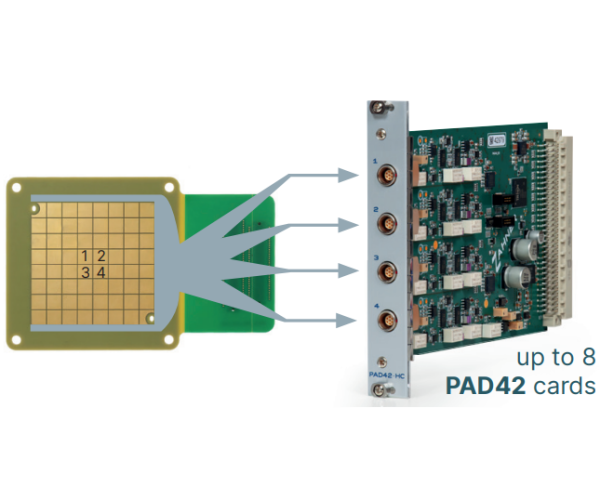

Cross-sectional analysis of a cell
The PAD42 card (with segmented shunts) enables cross-sectional analysis of the cell.
Learn more
Download
Download the PP2x2/PAD42/EL1002 Flyer.
-
PP2X2/PAD42/EL1002 Flyer
Download PDF
