Highend Meets Compact
IM7c

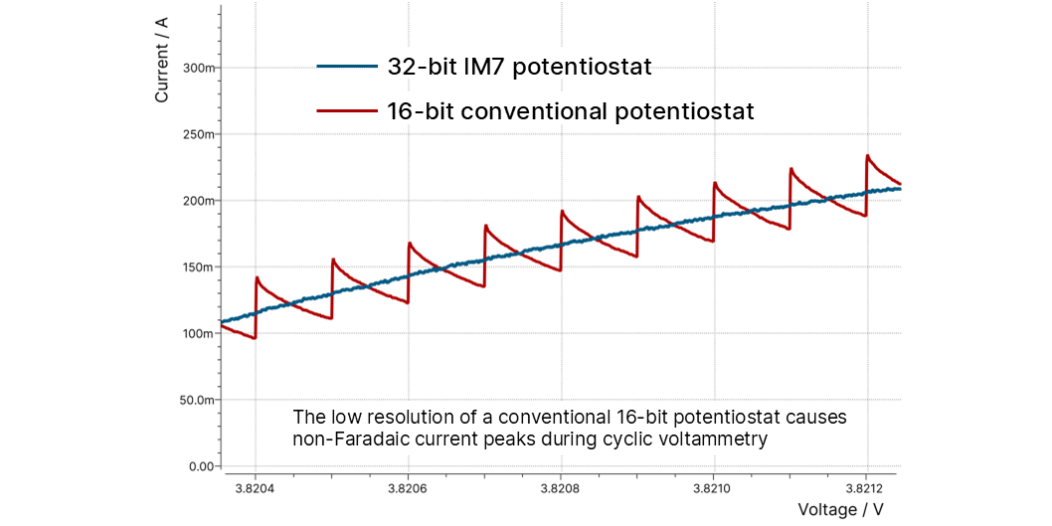

The IM7c is a compact potentiostat / galvanostat including a frequency response analyser. It offers 32-bit DC resolution and 24-bit AC resolution across 12 different current ranges, which ensure exceptionally accurate and precise measurements.
The IM7c can either be operated by Zahner Lab or by the zahner_link API. The zahner_link libraries communicate with the IM7c via WebSocket connections, exchanging JSON objects. Built with a C++ core, the zahner-link also offers Python bindings for simplified programming.
The main specifications for the IM7c are
The IM7c can either be operated by Zahner Lab or by the zahner_link API. The zahner_link libraries communicate with the IM7c via WebSocket connections, exchanging JSON objects. Built with a C++ core, the zahner-link also offers Python bindings for simplified programming.
The main specifications for the IM7c are
- DC voltage ranges: ±5 V and ±14 V
- Current up to ±2 A over 12 current ranges
- EIS frequency range from 10 µHz to 5 MHz
- Supported operating systems: Windows, Linux and macOS
- Controllable by C++ and Python
Specifications
Download PDF data sheetOverall bandwidth
DC - 6 MHz
ADC resolution
32-bit DC
24-bit AC
Harmonic reject
> 60 dB @ ½ full scale
Potentiostat modes
potentiostatic, galvanostatic
OCP, ZRA, FRA, off
Cell connection
2-, 3-, 4-terminal kelvin
Ground reference
grounded, floating
PC interface
Gigabit Ethernet (GbE)
Dimensions (H x W x D)
160 x 255 x 385 mm3
Weight
8 kg
Accessories
dummy cell, testbox, LoZ cable set, HiZ cable set, ethernet cable (3m), mains cable
quickstart installation guide, 3 Zahner Analysis licenses, safety precaution guide
Memory
40 GB m.2 SSD
SD card slot (for Recovery)
Power supply
100/115/230 VAC, 50/60 Hz
180 W
Ambient temperature
+10 °C to +30 °C
Ambient humidity
< 60% without derating
Storage temperature
-20 °C to +85 °C
Maximum input voltage
±5 V
±14 V
±14 V
5 V range
14 V range
14 V range
Voltage resolution
3.2 nV
9.6 nV
9.6 nV
5 V range
14 V range
14 V range
Voltage accuracy
±100 µV ±10 ppm of reading
±300 µV ±30 ppm of reading
±300 µV ±30 ppm of reading
5 V range
14 V range
14 V range
Current resolution
±2 aA (32 Bit)
Current accuracy
±0.5% of reading ±0.4% of FS
±0.05% of reading ±0.04% of FS
±0.5% of reading ±0.4% of FS
±0.5% of reading ±125 fA
±0.05% of reading ±0.04% of FS
±0.5% of reading ±0.4% of FS
±0.5% of reading ±125 fA
250 mA ... 2 A
2.5 µA ... 250 mA
25 nA ... 2.5 µA
< 25 nA
2.5 µA ... 250 mA
25 nA ... 2.5 µA
< 25 nA
Input impedance
> 10 TΩ || ±5 pF (typical)
Input leakage current
< |200 fA| typ.
< 5 pA max.
< 5 pA max.

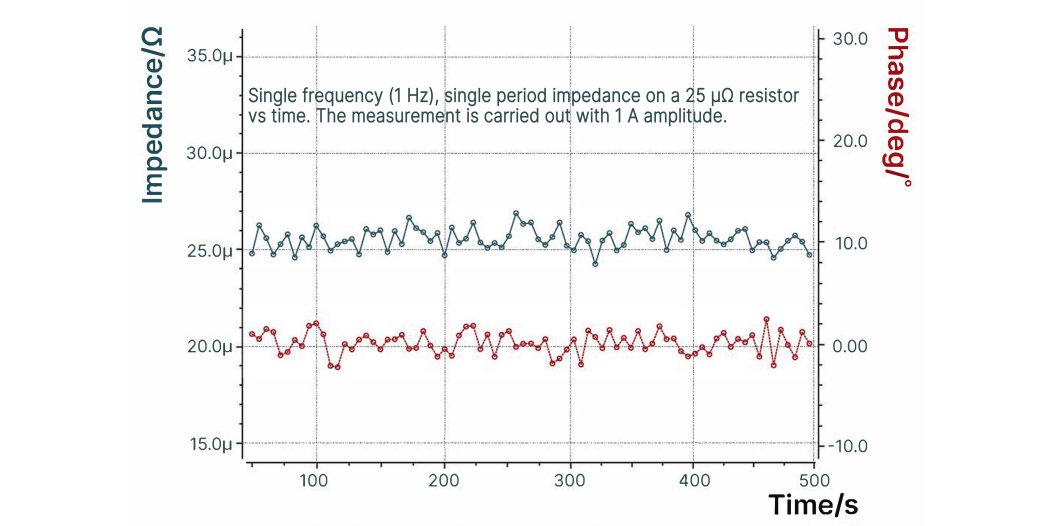

Impedance range
20 µΩ to 100 GΩ
see accuracy contour plot for detailed information
Common mode rejection
> 86 dB @ 10 µHz to 100 kHz
> 66 dB @ 100 kHz to 5 MHz
> 66 dB @ 100 kHz to 5 MHz
Input channel phase-tracking accuracy
±0.05 ° @ 10 µHz to 100 kHz
±0.125 ° @ 100 kHz to 5 MHz
±0.125 ° @ 100 kHz to 5 MHz
Equivalent effective input noise
1 µV rms / 100 fA rms @ 1 mHz to 10 Hz
Maximum sampling rate
900 kHz at up to 2 channels
Compliance voltage
±14 V
Controlled voltage
±5 V
±14 V
±14 V
Resolution
2.5 nV
7.5 nV
7.5 nV
5 V range
14 V range
14 V range
Accuracy
±250 µV ±20 ppm of reading
±750 µV ±60 ppm of reading
±750 µV ±60 ppm of reading
5 V range
14 V range
14 V range
Integral Nonlinearity
typ. 4 ppm, max. 8 ppm
typ. 12 ppm, max. 24 ppm
typ. 12 ppm, max. 24 ppm
5 V range
14 V range
14 V range
Bandwidth
DC to 6 MHz @ 33 Ω load
IR compensation
auto AC impedance technique
range 0 to 10 MΩ
resolution 0.012%
range 0 to 10 MΩ
resolution 0.012%
Small signal rise time
150 ns to 200 µs in 5 steps
automatic selection
Slew rate
15 MV/s
Controlled current
±2 A
Current range
±2.5 nA to ±2 A in 12 steps
Resolution
32 bit, ±0.2 ppb of FS
Accuracy
±0.1% of reading ±0.04 % of FS
±0.4% of reading ±0.2% of FS
±0.4% of reading ±0.2% of FS
≥ 2.5 µA to 250 mA
< 2.5 µA or > 250 mA
< 2.5 µA or > 250 mA
Frequency range
10 µHz to 5 MHz
Accuracy
< 0.0025%
Resolution
0.0025%,
10000 steps/decade
10000 steps/decade
AC voltage amplitude
0 to 2 V, 24 bit resolution
0 to 6 V, 24 bit resolution
0 to 6 V, 24 bit resolution
5 V range
14 V range
14 V range
AC current specification
0 to 2 A, 24 bit resolution
in 12 current ranges
Overall bandwidth
DC - 6 MHz
ADC resolution
32-bit DC
24-bit AC
Harmonic reject
> 60 dB @ ½ full scale
Potentiostat modes
potentiostatic, galvanostatic
OCP, ZRA, FRA, off
Cell connection
2-, 3-, 4-terminal kelvin
Ground reference
grounded, floating
PC interface
Gigabit Ethernet (GbE)
Dimensions (H x W x D)
160 x 255 x 385 mm3
Weight
8 kg
Accessories
dummy cell, testbox, LoZ cable set, HiZ cable set, ethernet cable (3m), mains cable
quickstart installation guide, 3 Zahner Analysis licenses, safety precaution guide
Memory
40 GB m.2 SSD
SD card slot (for Recovery)
Power supply
100/115/230 VAC, 50/60 Hz
180 W
Ambient temperature
+10 °C to +30 °C
Ambient humidity
< 60% without derating
Storage temperature
-20 °C to +85 °C
Maximum input voltage
±5 V
±14 V
±14 V
5 V range
14 V range
14 V range
Voltage resolution
3.2 nV
9.6 nV
9.6 nV
5 V range
14 V range
14 V range
Voltage accuracy
±100 µV ±10 ppm of reading
±300 µV ±30 ppm of reading
±300 µV ±30 ppm of reading
5 V range
14 V range
14 V range
Current resolution
±2 aA (32 Bit)
Current accuracy
±0.5% of reading ±0.4% of FS
±0.05% of reading ±0.04% of FS
±0.5% of reading ±0.4% of FS
±0.5% of reading ±125 fA
±0.05% of reading ±0.04% of FS
±0.5% of reading ±0.4% of FS
±0.5% of reading ±125 fA
250 mA ... 2 A
2.5 µA ... 250 mA
25 nA ... 2.5 µA
< 25 nA
2.5 µA ... 250 mA
25 nA ... 2.5 µA
< 25 nA
Input impedance
> 10 TΩ || ±5 pF (typical)
Input leakage current
< |200 fA| typ.
< 5 pA max.
< 5 pA max.
Impedance range
20 µΩ to 100 GΩ
see accuracy contour plot for detailed information
Common mode rejection
> 86 dB @ 10 µHz to 100 kHz
> 66 dB @ 100 kHz to 5 MHz
> 66 dB @ 100 kHz to 5 MHz
Input channel phase-tracking accuracy
±0.05 ° @ 10 µHz to 100 kHz
±0.125 ° @ 100 kHz to 5 MHz
±0.125 ° @ 100 kHz to 5 MHz
Equivalent effective input noise
1 µV rms / 100 fA rms @ 1 mHz to 10 Hz
Maximum sampling rate
900 kHz at up to 2 channels
Compliance voltage
±14 V
Controlled voltage
±5 V
±14 V
±14 V
Resolution
2.5 nV
7.5 nV
7.5 nV
5 V range
14 V range
14 V range
Accuracy
±250 µV ±20 ppm of reading
±750 µV ±60 ppm of reading
±750 µV ±60 ppm of reading
5 V range
14 V range
14 V range
Integral Nonlinearity
typ. 4 ppm, max. 8 ppm
typ. 12 ppm, max. 24 ppm
typ. 12 ppm, max. 24 ppm
5 V range
14 V range
14 V range
Bandwidth
DC to 6 MHz @ 33 Ω load
IR compensation
auto AC impedance technique
range 0 to 10 MΩ
resolution 0.012%
range 0 to 10 MΩ
resolution 0.012%
Small signal rise time
150 ns to 200 µs in 5 steps
automatic selection
Slew rate
15 MV/s
Controlled current
±2 A
Current range
±2.5 nA to ±2 A in 12 steps
Resolution
32 bit, ±0.2 ppb of FS
Accuracy
±0.1% of reading ±0.04 % of FS
±0.4% of reading ±0.2% of FS
±0.4% of reading ±0.2% of FS
≥ 2.5 µA to 250 mA
< 2.5 µA or > 250 mA
< 2.5 µA or > 250 mA
Frequency range
10 µHz to 5 MHz
Accuracy
< 0.0025%
Resolution
0.0025%,
10000 steps/decade
10000 steps/decade
AC voltage amplitude
0 to 2 V, 24 bit resolution
0 to 6 V, 24 bit resolution
0 to 6 V, 24 bit resolution
5 V range
14 V range
14 V range
AC current specification
0 to 2 A, 24 bit resolution
in 12 current ranges
Downloads
Access the latest manual about IM7 potentiostat.
Download 3D Model of IM7c in step file format.
