External potentiostat

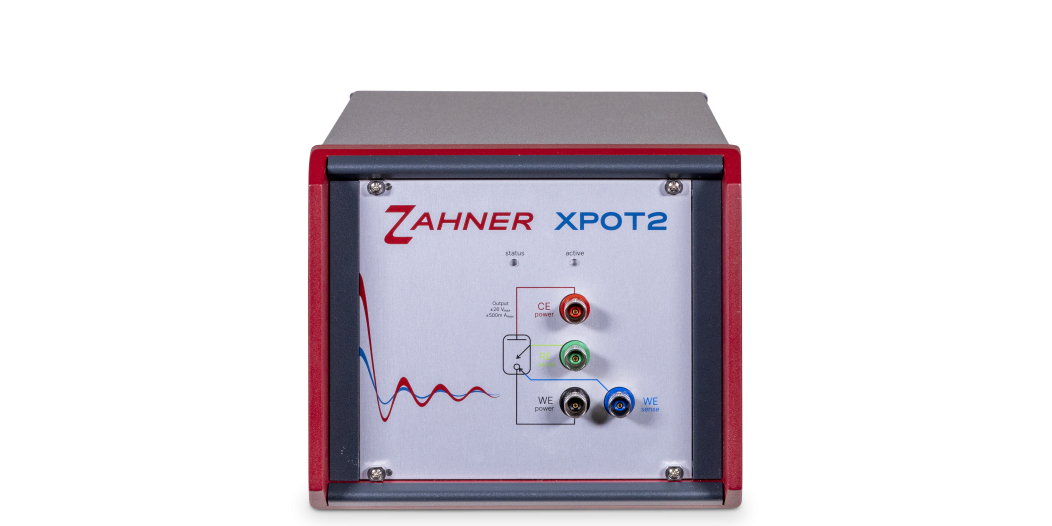

XPOT2
The XPOT2 as a high precision auxiliary potentiostat adds an additional channel to the IM7/ZENNIUM series potentiostat for bi-potentiostat functionality. The combination of IM7/ZENNIUM and XPOT2 enables rotating ring disk electrode (RRDE) measurements or hydrogen permeation in Devanathan cells. The XPOT2 provides up to ±500 mA output current and up to ±25 V compliance voltage. The XPOT2 contains 9 current ranges which enable it to carry out outstandingly precise and accurate measurements.
The Zahner's potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.
The Zahner's potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.
- Standalone operation and possible integration in a Python work environment
- Extension for bipotentiostat applications
Specifications
Potentiostatic modes
potentiostatic, galvanostatic, pseudo-galvanostatic, OCP
Cell connection
2-, 3-, 4-terminal sensing
Ground reference
grounded, floating
Compliance Voltage
±25 V
Maximum current
±0.5 A
Output power
12 W
Power dissipation
12 W
Input impedance
1 TΩ
Equivalent input noise
<10 µV rms
Memory
64 GB

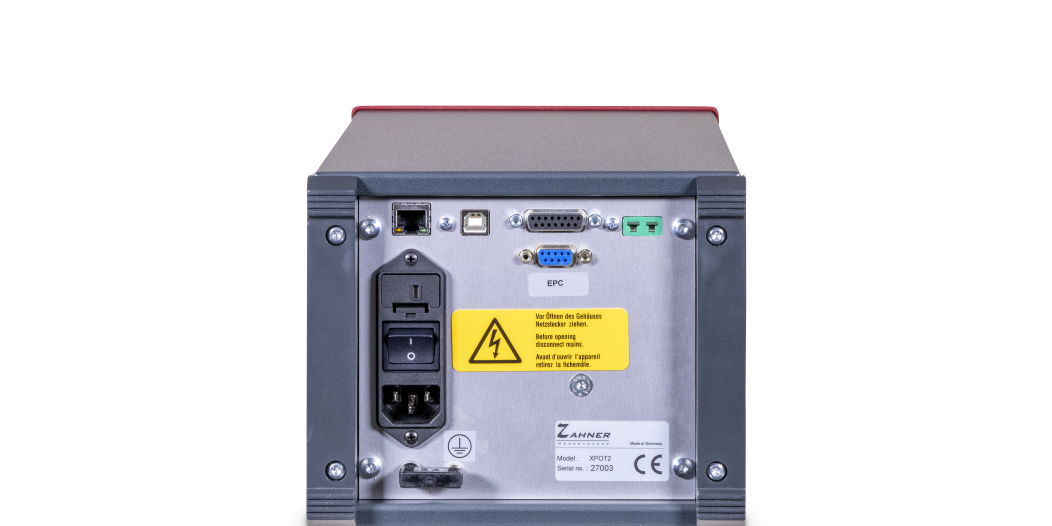

Interface
USB, Ethernet (2)
Additional I/Os
5 (2)
Additional analog inputs
4 (2)
Additional analog outputs
1 (2)
Temperature sensor interface
Type K (2)
Ambient temperature
10 °C - 25 °C
Maximum humidity
60 %
Dimensions (H x W x D)
160 x 185 x 327 mm3
Weight
4.6 kg
(2)Hardware features will be unlocked in future with a free software update
Maximum voltage accuracy
±500 µV ±0.1% of reading
Maximum current accuracy
±250 pA ±0.1% of reading
ADC resolution
24 bits
Input voltage resolution
0.596 µV
Input current resolution
3.81 pA
DAC resolution
16 bits
Output voltage resolution
125 µV
Output current resolution
12.5 pA
Frequency range
10 µHz - 200 kHz (Thales XT)
10 µHz - 400 kHz (Zahner Lab)
Impedance range
100 mΩ - 1 GΩ
Maximum voltage accuracy
±500 µV ±0.1% of reading
Maximum current accuracy
±250 pA ±0.1% of reading
ADC resolution
24 bits
Input voltage resolution
0.596 µV
Input current resolution
3.81 pA
DAC resolution
18 bits
Output voltage resolution
38.14 µV
Output current resolution
59.6 fA
Potentiostatic modes
potentiostatic, galvanostatic, pseudo-galvanostatic, OCP
Cell connection
2-, 3-, 4-terminal sensing
Ground reference
grounded, floating
Compliance Voltage
±25 V
Maximum current
±0.5 A
Output power
12 W
Power dissipation
12 W
Input impedance
1 TΩ
Equivalent input noise
<10 µV rms
Memory
64 GB
Interface
USB, Ethernet (2)
Additional I/Os
5 (2)
Additional analog inputs
4 (2)
Additional analog outputs
1 (2)
Temperature sensor interface
Type K (2)
Ambient temperature
10 °C - 25 °C
Maximum humidity
60 %
Dimensions (H x W x D)
160 x 185 x 327 mm3
Weight
4.6 kg
(2)Hardware features will be unlocked in future with a free software update
Maximum voltage accuracy
±500 µV ±0.1% of reading
Maximum current accuracy
±250 pA ±0.1% of reading
ADC resolution
24 bits
Input voltage resolution
0.596 µV
Input current resolution
3.81 pA
DAC resolution
16 bits
Output voltage resolution
125 µV
Output current resolution
12.5 pA
Frequency range
10 µHz - 200 kHz (Thales XT)
10 µHz - 400 kHz (Zahner Lab)
Impedance range
100 mΩ - 1 GΩ
Maximum voltage accuracy
±500 µV ±0.1% of reading
Maximum current accuracy
±250 pA ±0.1% of reading
ADC resolution
24 bits
Input voltage resolution
0.596 µV
Input current resolution
3.81 pA
DAC resolution
18 bits
Output voltage resolution
38.14 µV
Output current resolution
59.6 fA
Downloads
Download the latest manual about ZAHNER PP2X2 or XPOT2 potentiostat...
