Analog out & Digital I/O

MIO

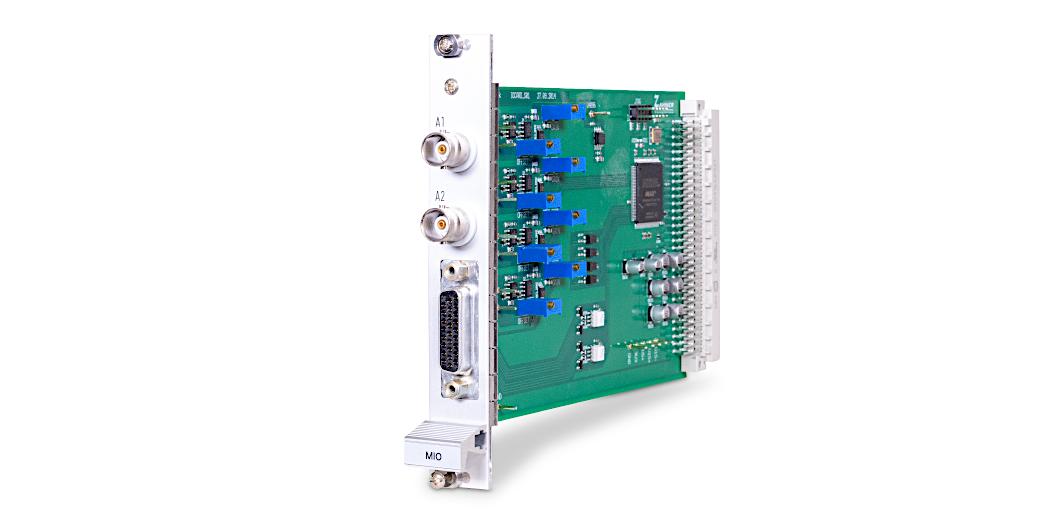

MIO card
The MIO addon card provides four analog output channels with a voltage range of ±10 V. In addition the MIO card is also equipped with four isolated digital input and four isolated digital relay output channels. The MIO addon card is used to receive and send trigger signals between the ZENNIUM potentiostats and a third party device.
  • Remote Integration possible
  • Can be controlled in Thales or script software

Specifications

Analog output channels
4
Output voltage range
±10 V
Output voltage resolution
16 bit
Digital output channels
4 isolated, relay output
Digital input channels
4 isolated
Analog output channels
4
Output voltage range
±10 V
Output voltage resolution
16 bit
Digital output channels
4 isolated, relay output
Digital input channels
4 isolated

Downloads

Download the latest manual about Zahner MIO addon card...

Request a quote

Is this the right product for you? Contact our sales team to get further information about our products and their suitability to your individual applications.
